Imagine trying to measure the flow of a roaring river with pinpoint accuracy. That’s the challenge engineers face when dealing with electrical currents in high-performance circuits. Enter the DC shunt—a deceptively simple device that unlocks precision in current measurement. But the process isn’t as straightforward as connecting wires and reading a dial. It requires meticulous steps, the right tools, and a sharp eye for detail.
Whether you’re troubleshooting a solar array, fine-tuning a battery management system, or designing an industrial power supply, mastering the art of using a shunt is non-negotiable. Done correctly, it can reveal invaluable insights about your system’s performance. Done wrong, and it could compromise your entire setup. In this guide, we’ll break down the step-by-step process, equip you with essential tools, and flag the pitfalls that even seasoned professionals sometimes overlook. Let’s turn complex currents into crystal-clear data.
Introduction
What Are DC Current Shunts, and Why Do They Matter?
A DC current shunt is the unsung hero of precision measurement. By diverting a fraction of current, it allows for accurate monitoring of high-powered electrical systems without disrupting their operation. This small device plays a colossal role in industries ranging from renewable energy to industrial automation, enabling engineers to measure and control electrical flows with unparalleled accuracy.
Why Is Choosing the Right Shunt Essential?
Not all shunts are created equal. Selecting the wrong one can lead to misleading data, overheating components, or even system-wide malfunctions. The stakes are high, especially in systems where precision is critical. The right shunt not only ensures reliable readings but also enhances the overall efficiency and safety of your electrical setup.
What Will This Guide Cover?
In this post, we’ll take you through the essentials of DC current shunts, exploring their working principles, different types, and the factors to consider when selecting the ideal one for your needs. Whether you’re an engineer, a DIY enthusiast, or simply curious about electrical systems, this guide will equip you with the knowledge to make confident and informed decisions. Let’s dive in!
What Does a Shunt Do in a DC Current Circuit?
What Is the Role of a Shunt in Measuring Current?
A DC shunt acts as a bridge between precision and practicality in electrical systems. By creating a small, measurable voltage drop proportional to the current passing through it, the shunt allows for accurate current measurement without disturbing the circuit. This voltage drop is then read by a voltmeter or other measuring device, translating raw current flow into clear data.
Why Is a Shunt Necessary for Accurate Current Measurements?
Traditional ammeters often struggle with high currents due to heat buildup and resistance limitations. A DC shunt resolves this by diverting the current and providing a stable, low-resistance path, ensuring precise readings even in demanding applications. Its design minimizes losses and eliminates the guesswork in current monitoring, making it indispensable in precision engineering.
When Do You Need a DC Shunt Versus Other Measuring Tools?
DC shunts shine in scenarios involving high-current circuits, where other tools like clamp meters may fall short in accuracy. They are critical for continuous monitoring in systems like renewable energy installations, electric vehicles, and industrial machinery, ensuring both safety and optimal performance.
Where in the Circuit Is a Shunt Typically Installed?
Shunts are strategically placed in series with the load, ensuring all current passes through the device. This positioning ensures the voltage drop reflects the total current in the circuit. Depending on the application, they may be installed near power sources, within control panels, or alongside critical loads.
Who Uses DC Shunts – Industries and Applications?
From automotive engineers monitoring battery performance to renewable energy specialists optimizing solar systems, DC shunts find applications across a spectrum of industries. They are also heavily utilized in manufacturing, telecommunications, and scientific research, proving their versatility and importance in modern technology.
What Is a DC Shunt and How Does It Work?
How Does a DC Shunt Divide Current?
A DC shunt acts like a calculated shortcut within an electrical circuit. It doesn’t physically split the current but instead creates a low-resistance pathway, redirecting a small fraction of the current to generate a measurable voltage drop. This allows for precise monitoring of the total current flowing through the main circuit without disrupting its performance.
What Is the Working Principle: Voltage Drop and Ohm’s Law?
At the heart of the DC shunt’s operation is Ohm’s Law: V=IR (Voltage = Current × Resistance). The shunt’s extremely low resistance ensures only a tiny voltage drop, which remains proportional to the total current. This predictable relationship enables accurate current measurement. By measuring the voltage across the shunt, engineers can calculate the total current without introducing significant resistance into the circuit.
What Are the Key Components of a Shunt and Their Functions?
A typical DC shunt comprises a highly conductive alloy, like manganin or copper, chosen for its stable resistance over a wide temperature range. Precision connectors ensure minimal loss in readings, while a robust base or casing provides durability. These components work together to deliver accurate, reliable performance even in high-stress applications, making the shunt a cornerstone of electrical measurement tools.

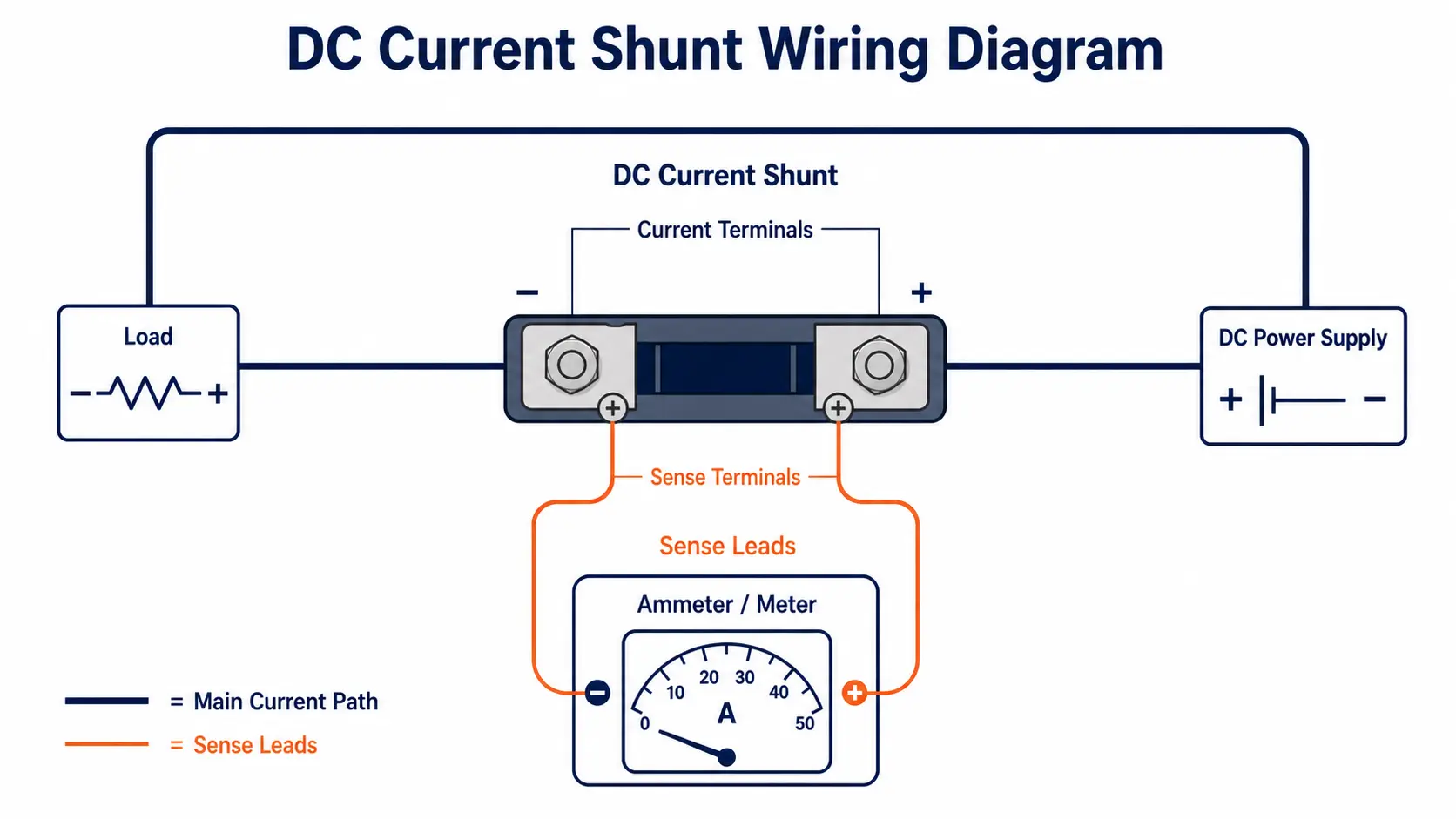

How to Measure DC Current Using a Shunt?
Step-by-Step Guide to Using a Shunt for Current Measurement
- Select the Right Shunt: Choose a shunt rated for the expected current range in your circuit to ensure accurate readings without risking damage.
- Integrate the Shunt in the Circuit: Connect the shunt in series with the load so that all the current flows through it. Ensure proper polarity alignment to avoid incorrect measurements.
- Measure the Voltage Drop: Using a digital multimeter or other precise voltmeter, measure the voltage drop across the shunt terminals.
- Calculate the Current: Apply Ohm’s law (I=RV), where V is the measured voltage, and R is the shunt’s resistance, to determine the current flowing through the circuit.
Tools and Equipment Needed for Precise Results
- High-Precision Voltmeter: Essential for accurately measuring the small voltage drop across the shunt.
- Quality DC Shunt: A calibrated shunt with known resistance value is critical for precise calculations.
- Connection Accessories: Use low-resistance wires and secure terminals to prevent additional resistance from skewing measurements.
- Protective Gear: Safety goggles and insulated gloves ensure safe handling of high-current circuits.
Common Mistakes to Avoid During Measurement
- Using an Incorrect Shunt: A shunt with an improper current rating can lead to inaccurate readings or damage.
- Poor Connections: Loose or corroded connections can introduce resistance and distort voltage measurements.
- Overlooking Calibration: Failing to confirm the shunt’s resistance value can result in errors, particularly if the shunt has been used extensively.
- Ignoring Temperature Effects: Ambient temperature changes can impact the shunt’s resistance, so account for this or choose a temperature-stable material like manganin.
How Accurate Is a DC Shunt?
What Factors Affect a Shunt’s Accuracy?
Several factors influence the accuracy of a DC shunt, with resistance stability being the most critical. Temperature variations can cause resistance changes, particularly in materials without a low-temperature coefficient, leading to inaccurate readings. External factors like poor connections, electromagnetic interference, and even vibration in high-current environments can also distort measurements. Over time, wear and tear or oxidation on terminals may further reduce the shunt’s precision.
How Does Precision Vary Between Different Types of Shunts?
Precision shunts, often made of manganin or similar alloys, provide superior stability and minimal resistance drift compared to standard shunts. Custom or application-specific shunts may offer enhanced accuracy for specific ranges, but their precision might drop outside those parameters. Conversely, general-purpose shunts are more versatile but can have a higher margin of error, making them less suitable for critical applications.
How to Choose a Shunt for High-Accuracy Applications?
When accuracy is paramount, opt for a shunt with a low-temperature coefficient to minimize resistance shifts caused by heat. Look for certified, calibrated shunts with traceable standards to ensure reliability. Consider the expected current range and select a shunt that operates comfortably within those limits, avoiding overloading or underutilization. Additionally, pay attention to the manufacturer’s tolerance specifications and choose one with the tightest tolerances for your application.
By understanding these factors and selecting the right type of shunt, you can achieve precise current measurements that support even the most demanding applications.
What Is the Difference Between Parallel and Shunt Configurations?
What Are Parallel Circuits and Shunt Resistors?
A parallel circuit splits current across multiple branches, each with its own resistance, ensuring current divides proportionally. On the other hand, a shunt resistor does not divide the main current. Instead, it provides a low-resistance path parallel to a measuring device, allowing only a small fraction of the current to create a measurable voltage drop. The shunt acts as a precision tool for monitoring without impacting circuit performance.
Why Is a Shunt Used Instead of a Parallel Resistor?
Shunts are designed for measurement purposes, providing a calibrated and stable resistance to ensure accurate readings of current. Parallel resistors are used primarily to distribute loads or control circuit parameters but lack the precision needed for measurements. Shunts also minimize the voltage drop across the system, preserving efficiency.
When Are Parallel Circuits and Shunts Most Effective?
Parallel circuits are ideal when designing systems that require multiple components to share current, such as multi-bulb lighting or redundant power systems. Shunts excel in applications needing precise current measurement, such as in battery management systems, solar inverters, and industrial automation.
Where Are These Configurations Used in Real-World Applications?
Parallel circuits are found in household electrical setups, automotive lighting, and speaker systems. Shunt resistors are critical in industries requiring high-accuracy monitoring, like renewable energy installations, electric vehicle powertrains, and telecommunications equipment.
Who Relies on Shunts Versus Parallel Circuits?
Engineers in precision fields like aerospace, energy, and manufacturing rely heavily on shunts for detailed measurements. In contrast, electricians and consumer electronics designers often utilize parallel circuits for reliable and efficient load distribution. Each serves distinct purposes, tailored to the demands of their respective applications.
What Is the Purpose of a Shunt in a 12V System?
How Does a Shunt Protect and Measure Current in Low-Voltage Systems?
In a 12V system, a shunt serves dual purposes: protection and precision. By providing a low-resistance path, the shunt minimizes power loss while enabling accurate current measurement through the voltage drop it generates. This setup protects sensitive devices downstream from overloads and ensures the system operates efficiently. The precise data collected also helps in monitoring performance and identifying potential faults.
What Are the Use Cases in Automotive, Renewable Energy, and Battery Setups?
In automotive systems, shunts monitor battery health, ensuring sufficient charge for critical operations like starting and lighting. In renewable energy setups, they track current flow from solar panels to batteries, optimizing energy storage and usage. For battery management systems, shunts are crucial in measuring charge and discharge cycles, enhancing battery longevity and safety. These versatile applications highlight the importance of shunts in various low-voltage environments.
What Are Tips for Selecting a Shunt for 12V Systems?
When choosing a shunt for a 12V system, prioritize accuracy and compatibility. Select a shunt with a resistance value low enough to minimize power loss but high enough to provide a measurable voltage drop. Ensure the current rating matches or exceeds the system’s maximum load. For temperature-sensitive environments, opt for a material like manganin to maintain stable resistance. Finally, choose shunts from reputable manufacturers to guarantee quality and durability
By integrating the right shunt, you can safeguard your 12V system, improve efficiency, and achieve precise monitoring tailored to your application’s needs.

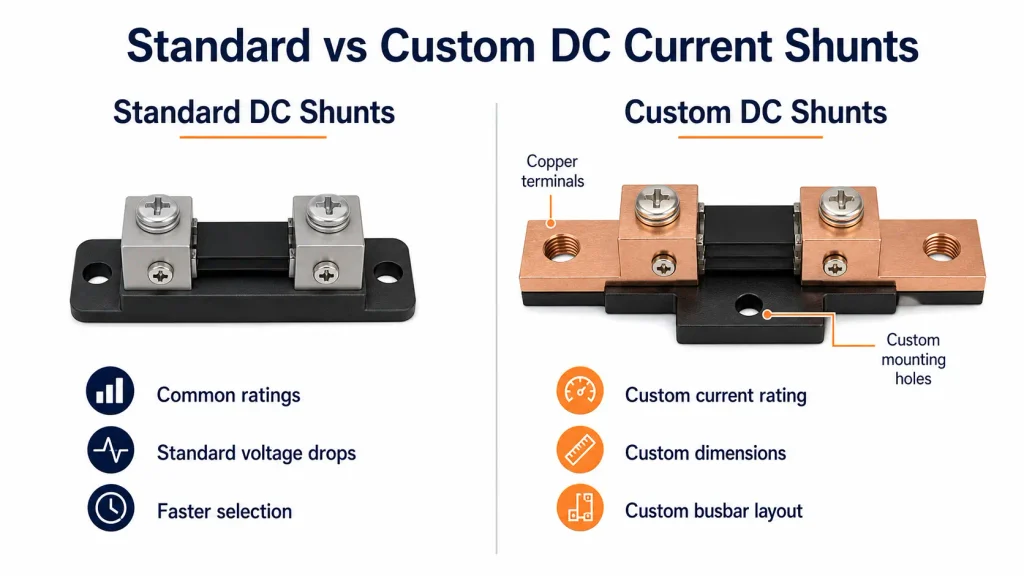

Types of DC Shunts: Which One Fits Your Needs?

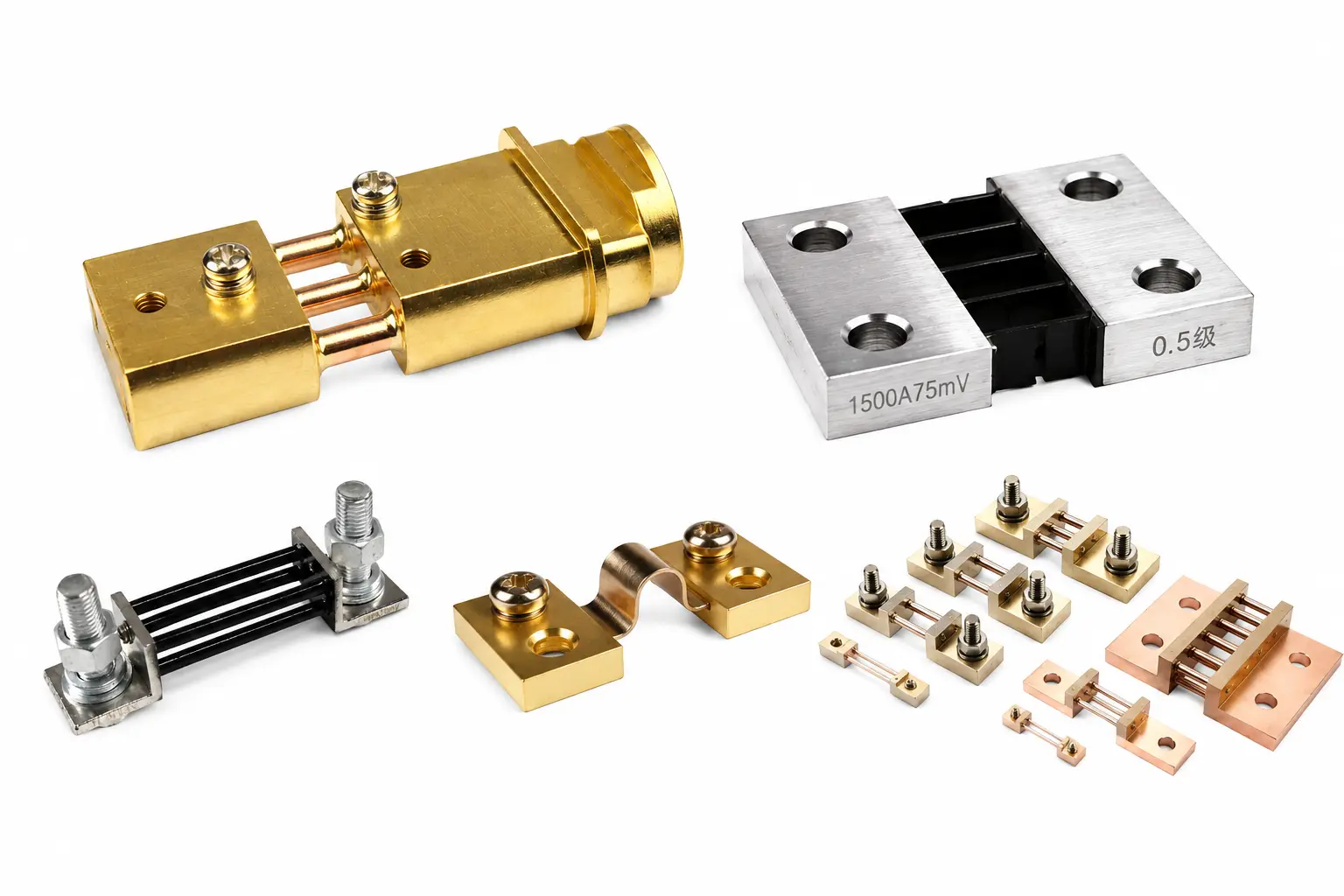

What Are the Different Types of DC Shunts?
DC shunts come in various types to meet specific application needs. Standard shunts are general-purpose devices used for typical current measurements. Precision shunts are designed for high-accuracy applications, with tight tolerances and minimal resistance drift. Custom shunts are tailored to unique requirements, such as unusual current ranges or extreme environmental conditions. These options provide flexibility across industries, from simple systems to complex high-performance setups.
What Are the Pros and Cons of Each Type?
- Standard Shunts: Affordable and readily available, but may lack the precision needed for critical measurements.
- Precision Shunts: Offer exceptional accuracy and stability, ideal for demanding environments but at a higher cost.
- Custom Shunts: Provide specific solutions to unique challenges but require longer lead times and higher upfront investment.
Choosing the right type depends on the balance between performance needs and budget constraints.
How to Match Shunt Specifications to Your Project’s Requirements?
Begin by identifying the maximum current and voltage in your system, ensuring the shunt can handle these loads without overheating. Assess the required accuracy level—precision shunts are essential for applications like laboratory measurements, while standard shunts suffice for general monitoring. Consider environmental factors like temperature fluctuations or exposure to moisture, selecting materials and designs that provide durability under such conditions. Custom shunts may be necessary for niche applications where off-the-shelf options fall short.
Materials and Durability: What to Look For?
What Are the Common Materials Used in Shunt Manufacturing?
DC shunts are typically made from high-conductivity and stable-resistance materials. **Manganin**, an alloy of copper, manganese, and nickel, is widely favored for its low-temperature coefficient and excellent resistance stability. Copper is often used for terminals due to its superior electrical conductivity. Some shunts incorporate nickel alloys for additional strength and corrosion resistance in demanding applications. These materials work together to ensure accurate measurements and robust performance.
How Do Materials Affect Performance and Longevity?
The choice of material directly impacts a shunt’s precision, durability, and temperature tolerance. Manganin provides reliable accuracy over a wide range of temperatures, making it ideal for critical measurements. Copper’s high conductivity minimizes resistance losses but requires proper coating to prevent oxidation. For long-lasting performance, materials must resist thermal expansion, which can cause resistance drift and compromise accuracy. The right material combination ensures a shunt maintains consistent performance under continuous use.
How to Select Shunts for Harsh Environments?
In challenging environments, durability becomes as important as accuracy. For high-temperature settings, choose shunts with heat-resistant coatings or materials like manganin that minimize thermal effects. For corrosive conditions, opt for shunts with protective layers or stainless steel housings to prevent degradation. If vibration or physical shocks are expected, select a robustly constructed shunt with reinforced terminals. Always verify manufacturer ratings and certifications to ensure the shunt is designed to endure the specific environmental stresses of your application.
How to Choose a Shunt Based on Current Range?
What Current Ranges Can Different Shunts Handle?
DC shunts are designed to handle specific current ranges, typically from milliamperes (mA) to thousands of amperes (A). Standard shunts cover common industrial and automotive needs, often rated between 50A and 500A. Precision shunts may be tailored for low-current applications, offering accurate measurements in the mA range, while heavy-duty shunts are built to withstand currents exceeding 1000A for high-power systems like renewable energy installations and electric vehicles.
What Factors Should Be Considered: Overload Capacity and Precision at Low Currents?
Overload capacity is crucial for safety and durability. A shunt should comfortably manage surges beyond its nominal rating without overheating or losing calibration. At low currents, precision is key—shunts with minimal resistance ensure accurate voltage drops and prevent misreadings caused by noise or thermal fluctuations. Consider the application’s current variability and ensure the chosen shunt provides consistent performance across its entire range.
How to Choose a Shunt Based on Current Range?
How to Ensure Compatibility with the Current Range?
When selecting a shunt, verify its compatibility with your measuring equipment. Ensure the voltage drop generated by the shunt at maximum current falls within the input range of your voltmeter or data acquisition system. An incompatible setup may lead to inaccurate readings or damage to sensitive devices. Additionally, choose shunts that adhere to industry standards for resistance and accuracy to streamline integration into existing systems.
How Do Environmental Conditions Influence Your Choice?
Environmental factors like temperature fluctuations, humidity, and physical vibrations can significantly impact a shunt’s performance. For applications in harsh climates, select shunts designed with robust insulation and thermal stability. If the application involves fluctuating temperatures, prioritize materials like manganin that exhibit minimal resistance drift to maintain accuracy. Always factor in the operating environment when determining the shunt’s current range and durability.
Final Thoughts on Current Range Selection
Understanding your system’s current demands and potential fluctuations is essential for choosing the right shunt. Matching the shunt’s capacity to your requirements not only improves measurement accuracy but also protects your system from overload and wear. Whether working with microcurrents in precision applications or high currents in industrial systems, selecting a shunt tailored to the range and conditions ensures long-term reliability and performance.
OEM Options: How to Customize a DC Shunt?OEM
Why Does OEM Customization Matter for Brand and Functionality?
OEM customization allows you to tailor a DC shunt to meet the exact needs of your application while aligning with your brand’s specifications. A customized shunt ensures optimal performance by matching the required dimensions, resistance, and current capacity of your system. Additionally, branding opportunities—like engraved logos or unique designs—can enhance your company’s identity, particularly in industries like automotive or industrial automation, where custom components reflect innovation and attention to detail.OEM

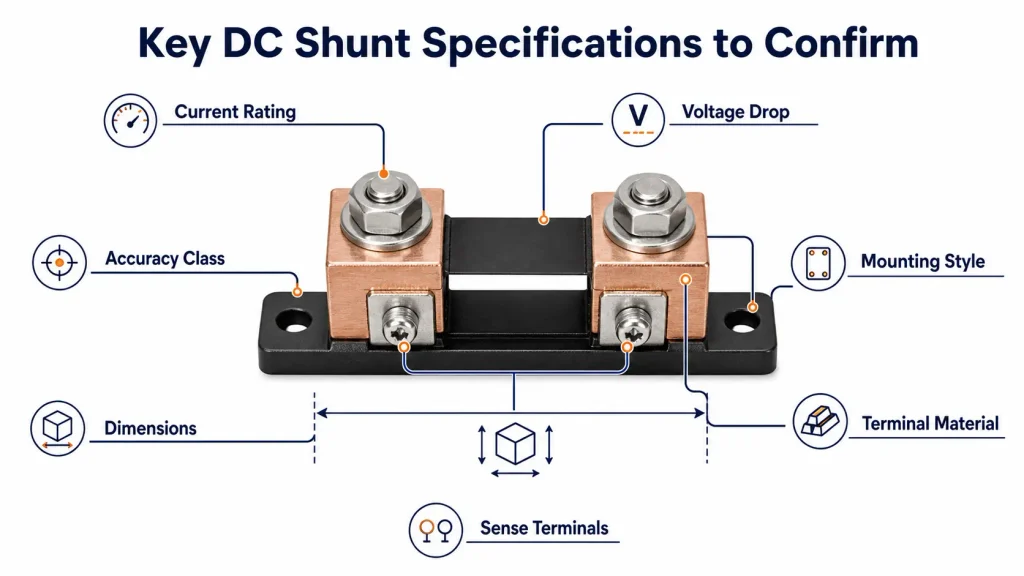

What Are the Key Aspects to Specify?
- Dimensions: Specify the physical size to ensure the shunt fits seamlessly into your circuit, especially in compact or space-constrained designs.**
- Resistance Value: Define the precise resistance needed to achieve accurate current measurements for your application. Resistance tolerances should align with your accuracy requirements.
- Current Capacity: Identify the maximum and overload current the shunt will encounter to ensure it can handle these levels without overheating or degrading.
How to Communicate Your Requirements to the Manufacturer?
Start by providing a comprehensive specification sheet that includes electrical, mechanical, and environmental requirements. Discuss the application’s purpose to help the manufacturer understand critical factors like expected current range, accuracy needs, and operational conditions. Use visual aids like schematics or CAD designs to clarify custom dimensions or unique features. Regular communication during the prototyping phase is essential to ensure the final product meets your expectations. Partnering with a manufacturer experienced in OEM shunts ensures smoother collaboration and better results.
Installation Tips: Where and How to Place a Shunt?
What Are the Best Practices for Physical Placement in a Circuit?
Position the shunt in series with the load to ensure that all current flows through it for accurate measurement. Place it as close as possible to the measuring device (e.g., voltmeter) to minimize voltage drop across connecting wires. Ensure the connections to the shunt are secure and use low-resistance wires to preserve measurement accuracy. For high-current applications, mount the shunt on a heat-resistant surface to dissipate heat effectively.
What Are the Safety Tips During Installation to Prevent Damage or Errors?
Before installation, confirm that the system is powered down to avoid electric shock or short circuits. Use insulated tools to make connections, and double-check the polarity of the shunt to ensure proper operation. If the shunt is exposed to high currents, wear protective gear and maintain a safe distance during testing. Additionally, follow the manufacturer’s recommendations regarding mounting and torque specifications to avoid damaging the shunt.
What Are Common Mistakes to Avoid During Setup?
One common mistake is using cables with excessive resistance, which can introduce errors in voltage drop measurement. Another is mounting the shunt in an area with insufficient ventilation, leading to overheating and reduced performance. Misaligning the polarity or failing to tighten connections adequately can result in inaccurate readings or even equipment failure. Skipping recalibration after installation can also compromise long-term accuracy.
Conclusion
What Are the Key Points Covered in This Guide?
Throughout this guide, we’ve explored the critical role of DC shunts in measuring and managing current in a variety of applications. From understanding their function and selecting the right type based on current range to considering materials, durability, and proper installation practices, each step contributes to achieving accuracy, reliability, and efficiency in your electrical systems.
What Are the Final Tips for Choosing the Perfect DC Shunt?
Choosing the right shunt requires careful attention to your system’s specific needs. Match the current range and accuracy requirements to the shunt’s specifications, and prioritize quality materials like manganin for stability. Always factor in environmental conditions and consider OEM customization if standard options don’t meet your unique requirements. Regular maintenance and proper installation will further ensure long-term reliability.
Now it’s your turn—share your experiences with DC shunts or let us know your thoughts in the comments below. Whether you’re an engineer, a hobbyist, or simply curious about electrical systems, your insights could help others navigate their choices. Have questions? Ask away! Let’s continue the conversation and make the complexities of current measurement simpler for everyone.
