Lightning Arrester Manufacturers
surge arrester manufacturer specializing in high-quality, durable protection solutions for electrical systems against over-voltage transients.

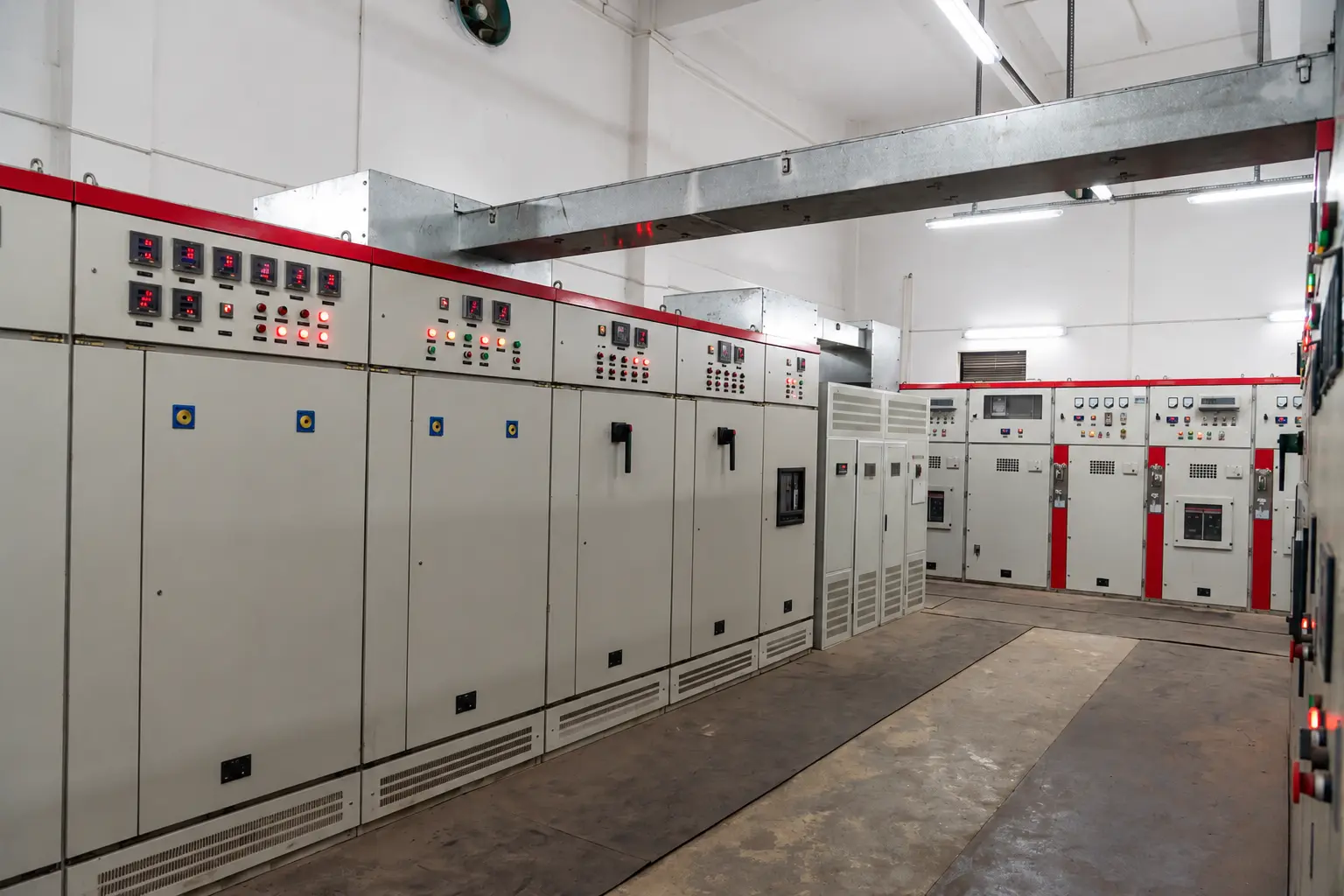

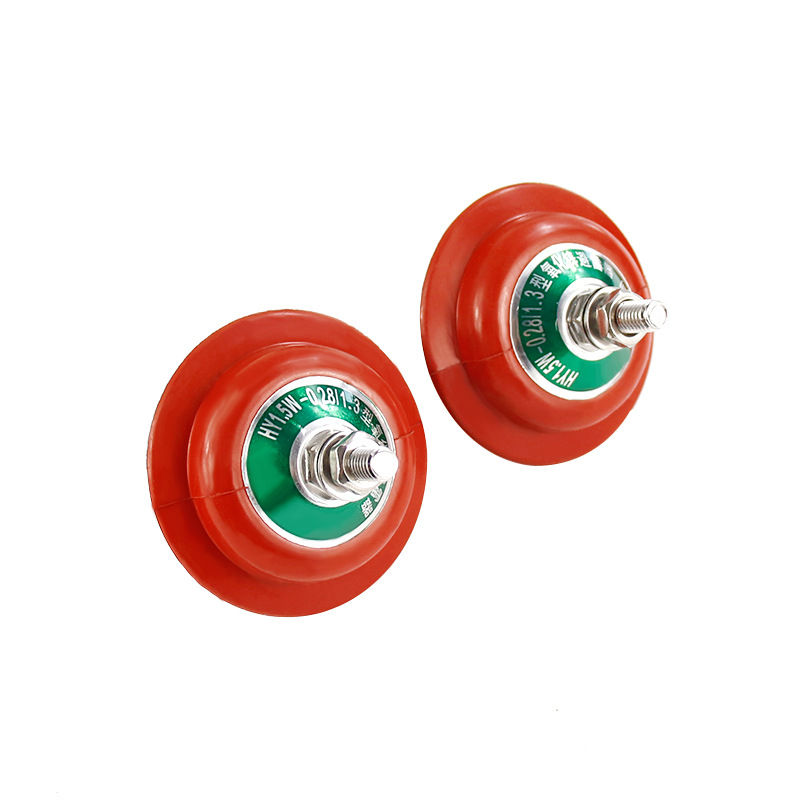

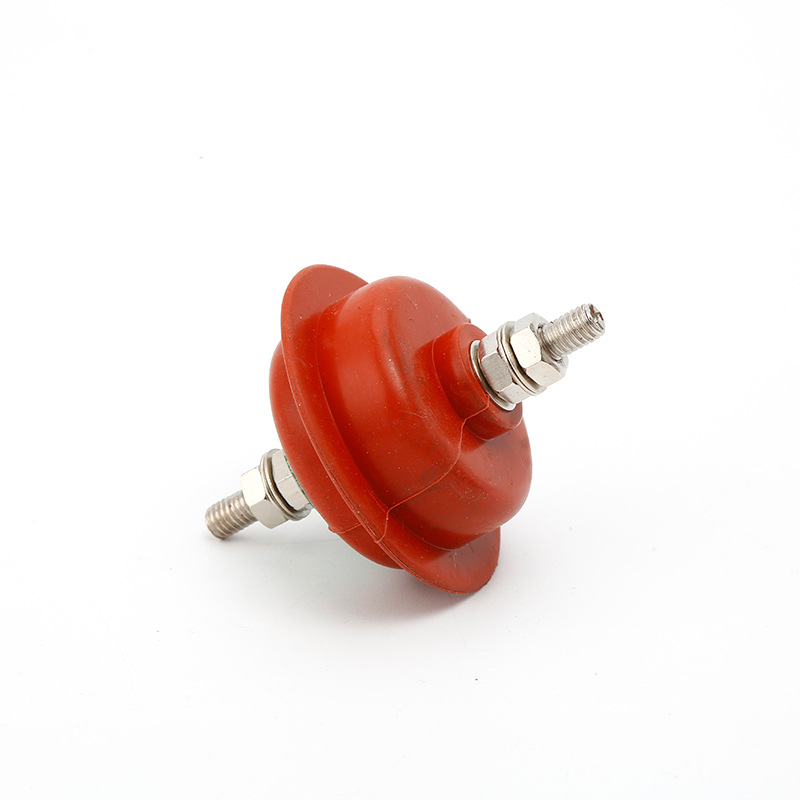

The Low Voltage Metal Oxide Surge Arrester series is a robust solution designed to protect electrical systems from transient over-voltage events. Its compact, lightweight structure ensures efficiency and reliability in safeguarding sensitive electrical components. The arrester is specifically ideal for use in switch cabinets and offers a range of advanced features including excellent sealing, moisture resistance, and explosion-proof capabilities. It is built to provide a long lifespan with minimal maintenance.
Compact & Durable Design: Efficient electrical protection with a strong, lightweight build.
Special Structure with Integral Molding: No air gap, offering superior sealing and moisture-proof performance.
Superior Hydrophobicity & Pollution Resistance: Ensures stable performance even in harsh environmental conditions.
Stable Performance: Low leakage with high capacity, making it an essential component for electrical system safety.
Benefits of Low Voltage Metal Oxide Surge Arrester:
Moisture Proof & Explosion Proof: Perfect for protecting sensitive equipment in environments with high humidity or potential for explosions.
Long-Term Durability: High resistance to pollution and superior sealing qualities extend the operational life of the arrester.
Cost-Efficient Protection: The arrester’s low leakage and high capacity ensure a cost-effective solution for safeguarding electrical systems.
Installation and Maintenance:
Easy to install with simple connection to the system’s ground.
Minimal maintenance required due to its advanced pollution and moisture resistance features.
Environmental Conditions:
Temperature Range: Suitable for temperatures ranging from -40°C to +40°C.
Humidity: Can withstand humidity levels of up to 2000mm.
Wind Resistance: Capable of withstanding wind speeds up to 35m/s.
| Parameter | Value |
|---|---|
| Model Number | YH1.5W-0.28/1.3, YH1.5W-0.5/2.6 |
| Rated System Voltage (kV) | 0.22, 0.38 |
| Discharge Voltage (kV) | 0.28, 0.5 |
| Continuous Operation Voltage (kV) | 0.24, 0.42 |
| 1mA Reference Voltage (kV) | 0.6, 1.2 |
| 2ms Impulse Current (kA) | 75, 75 |
| Residual Voltage (kV) | 1.3, 2.6 |
| Mounting Diameter (mm) | 55 |
| Height (mm) | 85, 75 |
| Operating Temperature (°C) | -40°C to +40°C |
| Humidity Resistance (mm) | ≤2000mm |
| Wind Speed Resistance (m/s) | ≤35 |

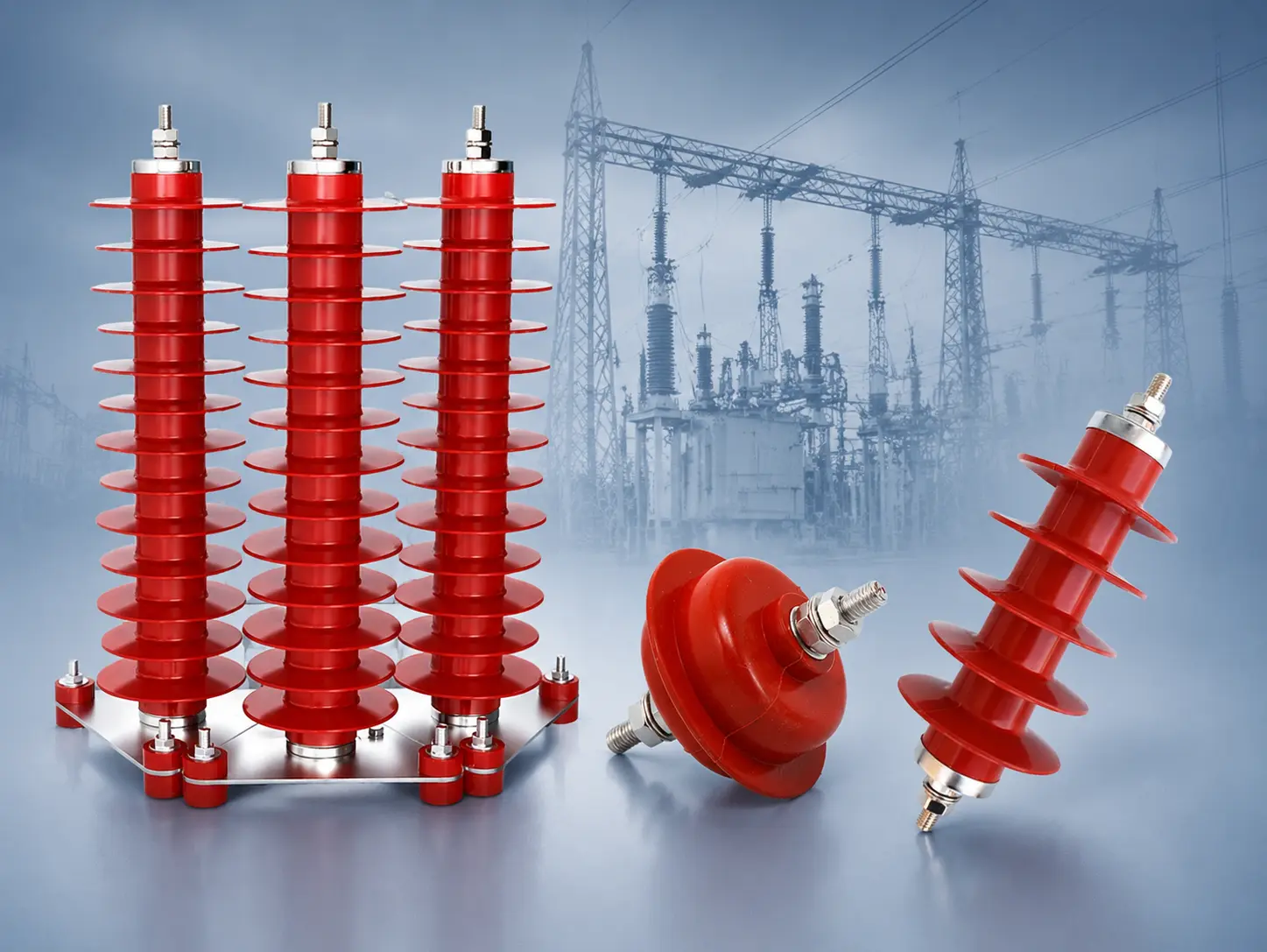

The 10kV Zinc Oxide Surge Arrester provides superior protection for electrical systems, designed to safely divert over-voltage surges away from sensitive equipment. This arrester is highly efficient in preventing damage caused by lightning strikes, switching surges, and other transient voltages. It is constructed with high-quality materials, thoroughly tested to ensure optimal performance and durability.
With a robust structure that integrates advanced zinc oxide varistor technology, this arrester guarantees a long service life while providing effective over-voltage protection. It is widely used in a variety of applications, including power distribution networks, industrial control systems, and electrical substations.
Advantages:
Optimal Surge Protection: Ensures the electrical system is shielded from transient over-voltage events.
High Durability: Long-lasting materials and design minimize the need for replacements.
Minimal Maintenance: The arrester is designed to operate for years with minimal upkeep.
Key Features:
High Surge Capacity: Effectively handles high-voltage transients with minimal leakage.
Zinc Oxide Varistor Technology: Provides efficient voltage protection, ensuring stable performance.
Compact and Durable: Robust design for long-lasting, trouble-free operation.
Moisture and Explosion Proof: Designed for harsh environmental conditions, ensuring operational reliability.
Low Maintenance Requirements: Minimal upkeep needed due to advanced pollution resistance and hydrophobic properties.
Applications:

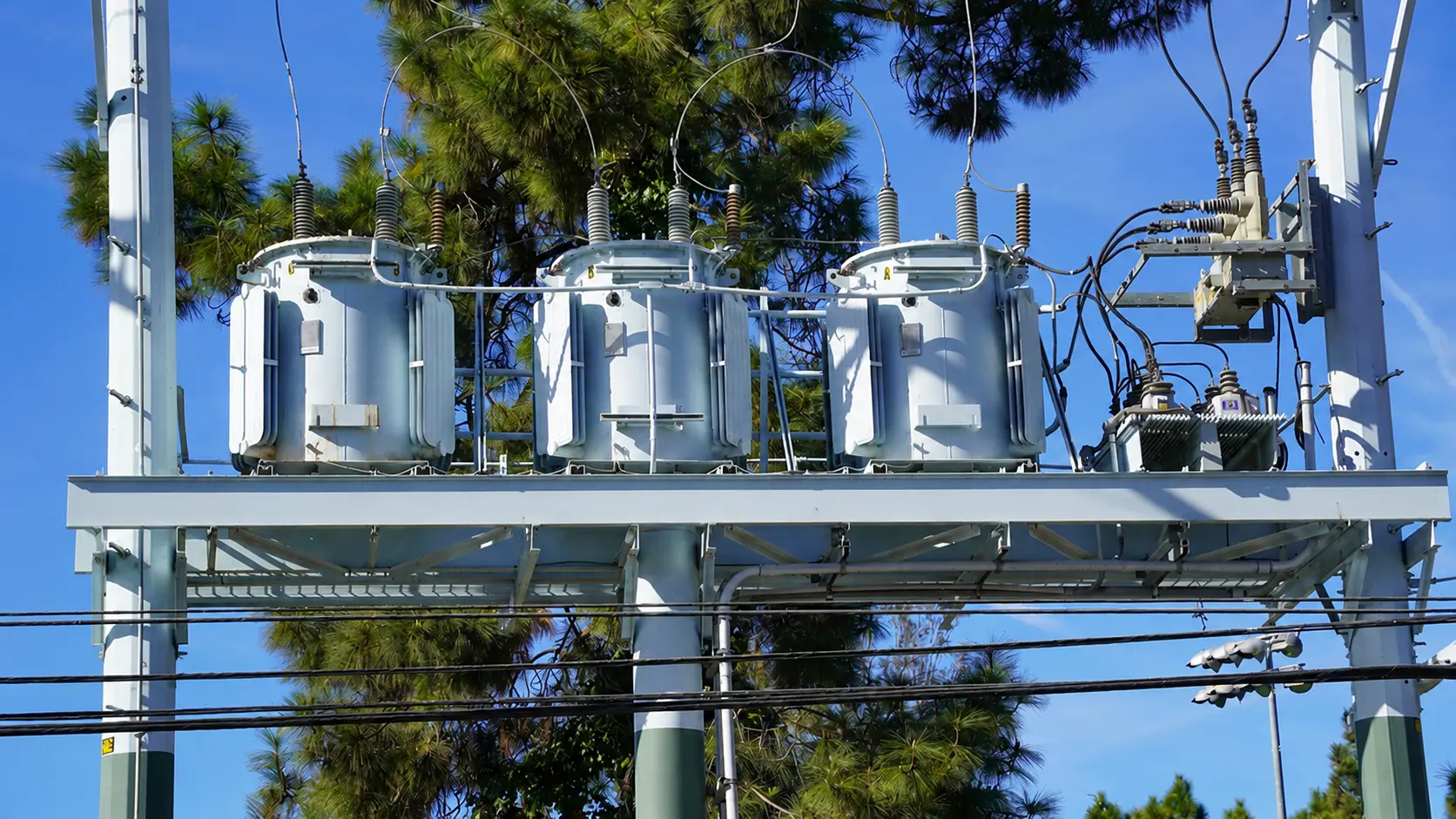

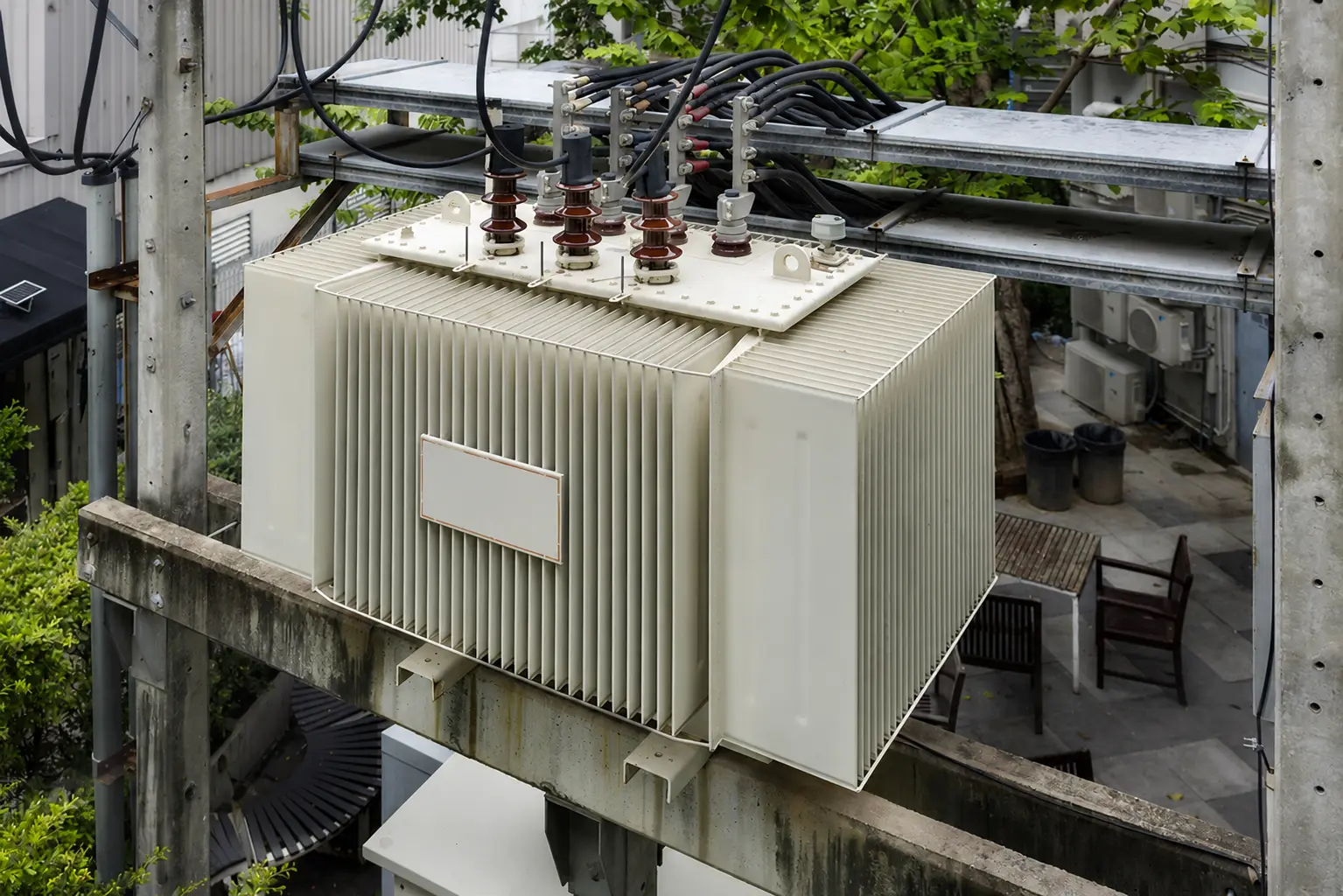

Power Distribution Networks: Safeguards transformers, switchgear, and distribution lines.
Substations: Protects vital electrical equipment from surge damage.
Industrial Control Systems: Ensures the stability of sensitive equipment by preventing over-voltage.
| Parameter | Value |
|---|---|
| Product Model | YH5WS-17/50 |
| System Rated Voltage (kV) | 10 |
| Surge Arrester Rated Voltage (kV) | 17 |
| Continuous Operating Voltage (kV) | 13.6 |
| DC 1mA Reference Voltage (kV) | 25 |
| 2ms Impulse Current (kA) | 150 |
| Residual Voltage (kV) | 57.5 |
| Umbrella Diameter (Φ mm) | 70/100 |
| Height (H mm ±10) | 265 |
| Lightning Surge Current (kA) | 50 |
| Operating Surge Current (kA) | 42.5 |
| Parameter | Value |
|---|---|
| Product Model | YH5WS-17/50Q |
| System Rated Voltage (kV) | 10 |
| Surge Arrester Rated Voltage (kV) | 17 |
| Continuous Operating Voltage (kV) | 13.6 |
| DC 1mA Reference Voltage (kV) | 25 |
| 2ms Impulse Current (kA) | 150 |
| Residual Voltage (kV) | 57.5 |
| Umbrella Diameter (Φ mm) | 104 |
| Height (H mm ±10) | 220 |
| Lightning Surge Current (kA) | 50 |
| Operating Surge Current (kA) | 42.5 |
| Parameter | Value |
|---|---|

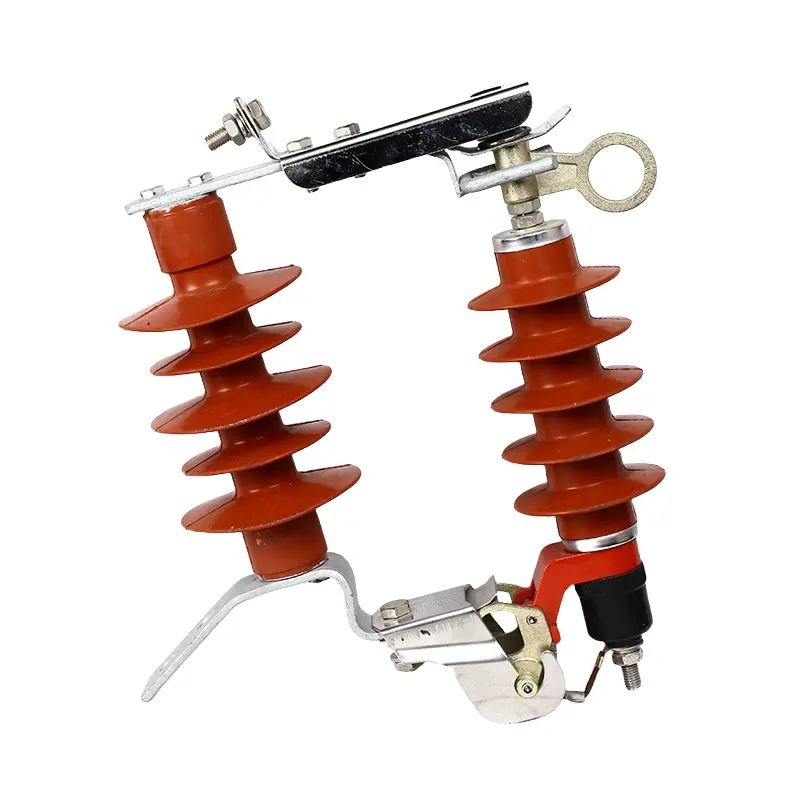

| Product Model | YH5BS-17/50 |
| System Rated Voltage (kV) | 10 |
| Surge Arrester Rated Voltage (kV) | 17 |
| Continuous Operating Voltage (kV) | 13.6 |
| DC 1mA Reference Voltage (kV) | 25 |
| 2ms Impulse Current (kA) | 150 |
| Residual Voltage (kV) | 57.5 |
| Umbrella Diameter (Φ mm) | 104 |
| Height (H mm ±10) | 220 |
| Lightning Surge Current (kA) | 50 |
| Operating Surge Current (kA) | 42.5 |
| Parameter | Value |
|---|---|
| Product Model | YH5WS-17/50L |
| System Rated Voltage (kV) | 10 |
| Surge Arrester Rated Voltage (kV) | 17 |
| Continuous Operating Voltage (kV) | 13.6 |
| DC 1mA Reference Voltage (kV) | 25 |
| 2ms Impulse Current (kA) | 150 |
| Residual Voltage (kV) | 57.5 |
| Umbrella Diameter (Φ mm) | 96 |
| Height (H mm ±10) | 314 |
| Lightning Surge Current (kA) | 50 |
| Operating Surge Current (kA) | 42.5 |
| Parameter | Value |
|---|---|
| Product Model | YH5WR-17/45 |
| System Rated Voltage (kV) | 10 |
| Surge Arrester Rated Voltage (kV) | 17 |
| Continuous Operating Voltage (kV) | 13.6 |
| DC 1mA Reference Voltage (kV) | 24 |
| 2ms Impulse Current (kA) | ≥400 |
| Residual Voltage (kV) | 46 |
| Umbrella Diameter (Φ mm) | 104 |
| Height (H mm ±10) | 250 |
| Lightning Surge Current (kA) | 35 |
| Operating Surge Current (kA) | 35 |
| Parameter | Value |
|---|---|
| Product Model | YH5WZ-17/45 |
| System Rated Voltage (kV) | 10 |
| Surge Arrester Rated Voltage (kV) | 17 |
| Continuous Operating Voltage (kV) | 13.6 |
| DC 1mA Reference Voltage (kV) | 24 |
| 2ms Impulse Current (kA) | 150-400 |
| Residual Voltage (kV) | 51.8 |
| Umbrella Diameter (Φ mm) | 104 |
| Height (H mm ±10) | 250 |
| Lightning Surge Current (kA) | 45.0 |
| Operating Surge Current (kA) | 38.3 |

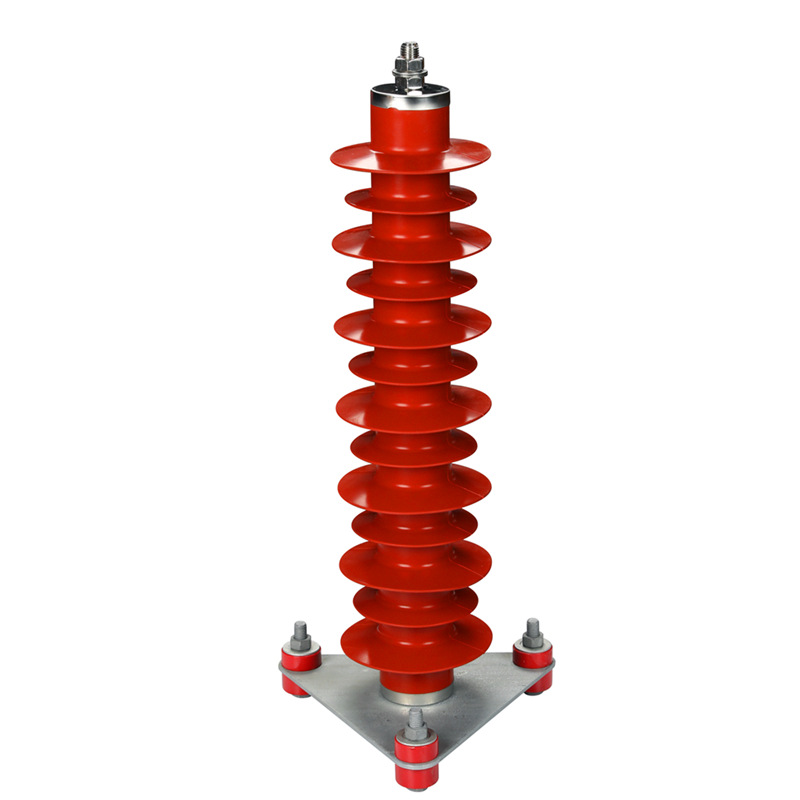

35kV lightning arrester
| Parameter | Value |
|---|---|
| Product Model | YH5WZ-51/134 |
| System Rated Voltage (kV) | 35 |
| Surge Arrester Rated Voltage (kV) | 51 |
| Continuous Operating Voltage (kV) | 40.8 |
| DC 1mA Reference Voltage (kV) | 73 |
| 2ms Impulse Current (kA) | 400/600 |
| Residual Voltage (kV) | 154 |
| Umbrella Diameter (Φ mm) | 104/136 |
| Height (H mm ±10) | 535 |
| Lightning Surge Current (kA) | 134 |
| Operating Surge Current (kA) | 114 |
Porcelain-housed Arrester
Porcelain-housed arresters, available in sizes like Y10W-72 to Y10W-228, are designed for electrical protection with a porcelain exterior. They operate effectively within -40℃ to +40℃, withstand up to 1.1kW/m² solar radiation, and altitudes up to 2,000m. Suitable for 48-62 Hz power supplies, they ensure safety under continuous operating voltages, endure earthquake intensities up to 8 degrees, and resist winds up to 35 m/s.
Product name | Lightning Surge Arrester |
Size | Customized; Y10W-72,Y10W-84,Y10W-108,Y10W-138,Y10W-174,Y10W-228,etc. |
Color | Porcelain |
Features of Products | Protection voltage |
Material | Porcelain |
Surface treatment | N/A |
Technics | Electrical equipment |
Application | KEMA |
OEM | Accept |
Certification | ISO9001,ISO14001,ISO45001 |
Using Environment of lightning Arresters:
operating voltage;
Application Areas

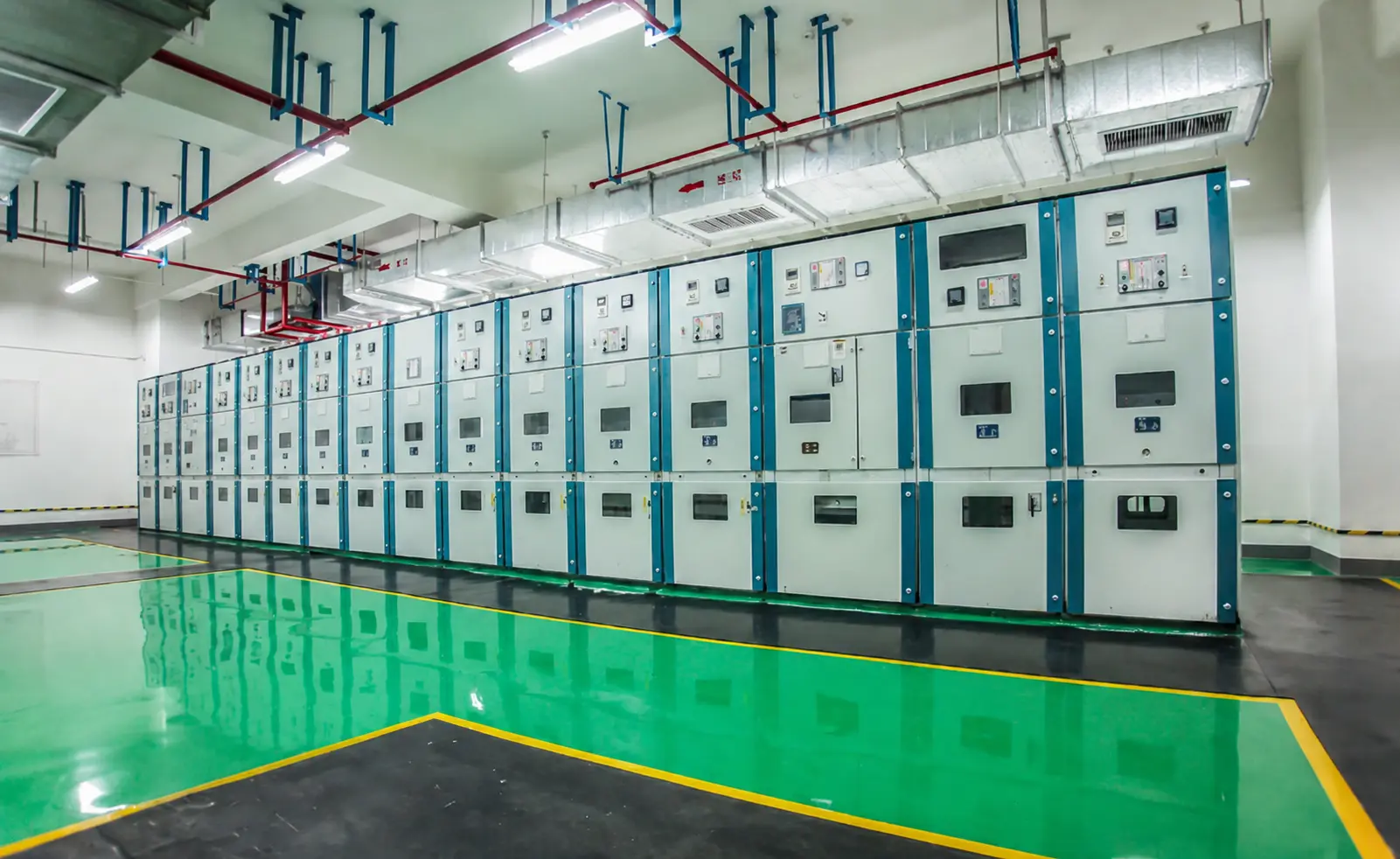

Zinc oxide surge arresters are used in power systems, industrial plants, renewable energy, telecom, and transportation to protect equipment from voltage surges.
Most Popular Questions.
LEEYD accommodates various payment methods to facilitate your purchasing process. We accept T/T, LC, PayPal, Western Union, Payoneer, Visa, and Master Card. Should you have further inquiries or need assistance regarding payment, please contact us at [email protected].
Yes, LEEYD is pleased to provide samples for most of our electrical products. The MOQ for our products, such as surge arresters, starts at 1 piece. For specific product MOQs and sample requests, please reach out to us directly at [email protected].
LEEYD ensures secure and efficient delivery of your orders by offering various shipping methods, including sea freight, air freight, land transportation, express delivery, and more. To discuss the most suitable shipping method for your order, please contact our team at [email protected].
Our commitment to quality is demonstrated through our adherence to international standards, validated by our numerous certifications, including ISO9001, ISO14001, OHSAS18001, KEMA, and CE. With our in-house manufacturing facilities and stringent quality control processes, LEEYD ensures each product aligns with our legacy of reliability and excellence.
LEEYD offers a diverse array of electrical products, including AC and DC Metal Oxide Ordinary Surge Arresters, Tank-type Surge Arresters, and a variety of power and energy solutions like current shunts, current transformers, and automation products, each designed and manufactured to meet the dynamic needs of the industrial power and energy sector.
